Products > Logistics equipment > conveyor > Drive roller conveyor(Double Sprocket)
Product name : Drive roller conveyor(Double Sprocket)
Item : 201632911275
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

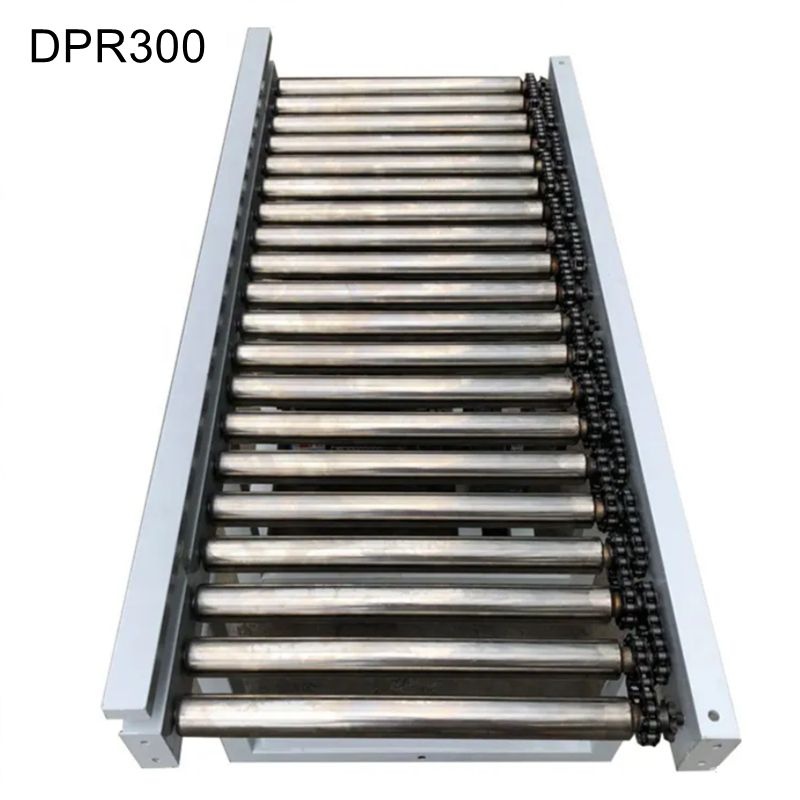

Drive roller conveyor(Double Sprocket)
    Roller conveyor is composed of roller section, drive unit (including guard), chain, support etc. Under slung mounted motor drives above two rollers through chain, these two rollers will separately drive front and back rollers.
    Standard conveyor is equipped with high quality reducer motor. Configuration position, output revolution and power etc of reducer motor are determined by working condition. Motor power depends on loading, conveyor speed and length etc. Common motor power can be 0.37, 0.55, 0.75, 1.1, 1.52.23 kw
    Standard roller diameter is 506076mm, sprocket is 08B,08A,10A,10B, dia 89mm roller is optional. Roller with high quality bearing can rotate smoothly, small resistance, low noise, long service life and galvanization treatment on roller surface. Using standard steel welded ring for roller.
    Support uses welded or bolted support. Adjustable foot is mounted at the bottom for height adjustment within the range of ±30mm. Distance between supports is determined by working condition, usually it is between 800-2000mm.

●max length of standard double chain roller conveyor: 6000mm
●simple structure, stable running, accord with international safety standard
●modular design, easy installation and maintenance
●big bearing surface, strong carrying capacity, long service life
